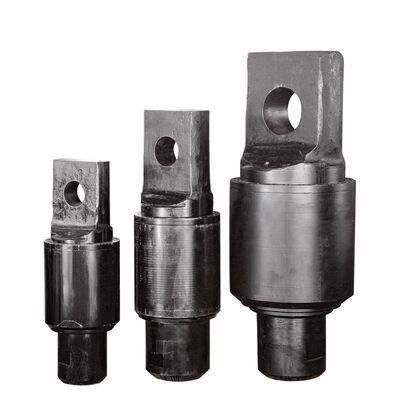

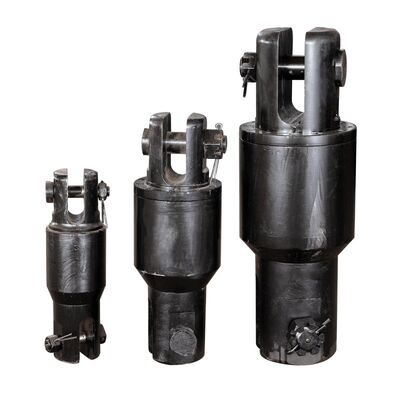

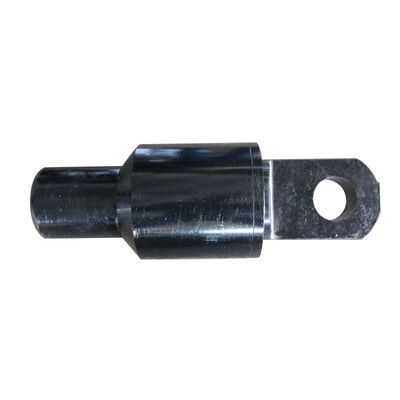

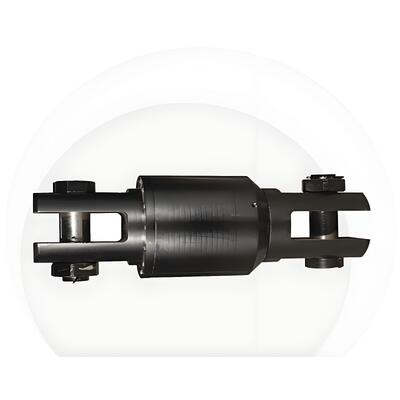

Versatile Swivel Joint for Enhanced Machinery Flexibility and Movement

Grote Afbeelding : Versatile Swivel Joint for Enhanced Machinery Flexibility and Movement

Productdetails:

Plaats van herkomst:	China
Merknaam:	Longway
Certificering:	ISO9001
Modelnummer:	10T

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	negotiable
Verpakking Details:	Volgens de behoeften van klanten
Levertijd:	20-30 werkdagen, die volgens verschillende producten en inventaris zullen worden aangepast
Betalingscondities:	T/T

Contact

Versatile Swivel Joint for Enhanced Machinery Flexibility and Movement

beschrijving

Tractie- en verbindingsmodus:	binauraal

Swivel Introduction

The Drill Pipe Swivel is designed for use in any drilling string where frictional issues may prevent reaching target depth, particularly in long, horizontal extended reach drilling (ERD) wells.

Our Langwei™ Swivel is a drill-string deployed tool that enables rotation of the drill pipe above the liner in ERD wells. This innovative solution reduces drag, redistributes friction, and mitigates helical buckling of the work-string. Additionally, it increases available weight to push completions and liners to target depth in ERD applications.

Technical Specifications

Type	Traction end connection mode	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	kg
10T Swivel Series	Binaural	28	99	317	28	33	10.5
15T Swivel Series	Binaural	32	109	360	32	38	19
18T Swivel Series	Binaural	32	136	352	30	35	20.5
20T Swivel Series	Binaural	36	146	415	36	44	26.5
25T Swivel Series	Binaural	38	156	433	38	42	29
30T Swivel Series	Binaural	39	166	477	40	50	41
40T Swivel Series	Binaural	42	192	543	48	60	70
50T Swivel Series	Binaural	61	210	571	59	75	100
50T Swivel Series	NC31	60	210	571	60	75	100
60T Swivel Series	NC38	65	234	672	65	90	125
80T Swivel Series	NC46	65	244	697	65	90	175
100T Swivel Series	NC50	85	270	821	84	108	240
150T Swivel Series	NC50	100	314	904	102	135	330
200T Swivel Series	NC50,5-1-2FH	110	340	1177	118	150	415
300T Swivel Series	NC50,5-1-2FH	125	390	1282	122	173	800
400T Swivel Series	6-5-8FH	150	480	1530	150	216	940
500T Swivel Series	6-5-8FH	170	570	1651	192	248	2010

Key Features

Swivel cap complete with lifting bail for hoisting cable applications
Specially designed bearing lubrication system keeps contaminants away while relieving excess lubrication pressure
Suitable for use with both water and drilling mud
Designed for easy field servicing using common tools
Majority of components are compatible with underground compact plus water swivel systems

Frequently Asked Questions

What is your delivery time?

Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.

How do you ensure product quality?

We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.

Do you accept sample orders?

Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.

Are your drill pipes heat-treated?

Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.

Do your drill pipes have anti-rust protection?

Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
