Productdetails:
|
| Naam: | hdd boorpijp | Diameter: | 83 MM. |
|---|---|---|---|
| muurdikte: | 9 MM. | Lengte: | 4.5 m |
| Gewicht: | 79 kg | Hulpmiddel Gezamenlijke OD: | 92 MM. |
| Draad: | D80 NC26 | staalkwaliteit: | S |
| Torsiegrens: | 18 KN.m | Min.Bend Straal: | 65 m |
| Markeren: | 83mm de Pijp van de Diameterhdd Boor,NC26 de Boorpijp van draadhdd,83mm de Pijp van de Diameterxt57 Boor |
||

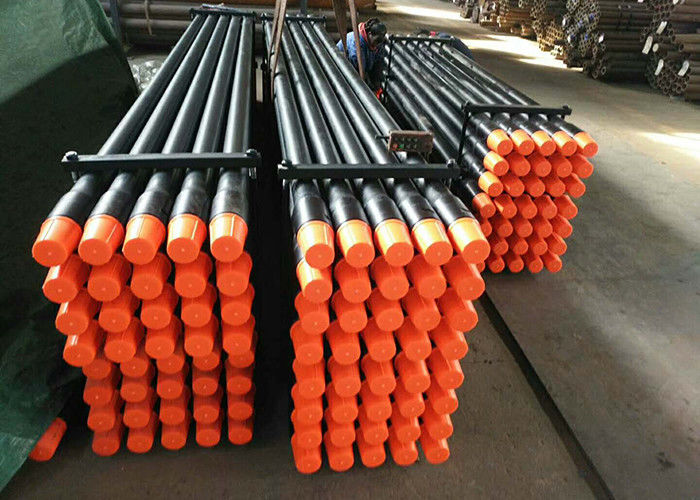

83 van mm Anticorrosieve Anti Diameter - de Pijp van de Stokhdd Boor
Productdetail
Productomschrijving
Productspecificaties
| Diameter | Muurdikte | Lengte | Gewicht | Hulpmiddel Gezamenlijke OD | Draad | Staalkwaliteit | Torsiegrens | Min.Bend Straal | ||||||
| 83 | 3 1/4* | 9 | 0,354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 |
G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
Productreeks
| Merk | Model | Lengte (schouder aan-schouder) |
Buiten Diameter |
Hulpmiddel Gezamenlijke OD | Muurdikte | Staalkwaliteit |
| COMPUTER-AIDED SOFTWARE ENGINEERING | Case6010 | 120 " ±0.5“ | 1.9 " ±0.031“ | 2.25*±0.16“ | 0,24“ | S135 |
| Case6030 | 120 " ±0.5“ | 2.375 " *0.031* | 2.625 " ±0.16“ | 0,28“ | S135 | |
| VERMEER | D10X15 | 120 " ±0.5“ | 1.66 " ±0.31“ | 1.88 " ±0.16“ | 0,24“ | S135 |
| D16x20/D18x22 | 120 " ±0.5“ | 1.9 " ±0.31“ | 2.125 " ±0.16“ | 0,24“ | S135 | |
| D24X40F/D24X40LW | 120 " ±0.5“ | 2.375 " ±0.31“ | 2.625 " ±0.16“ | 0,28“ | S135 | |
| D33X44ID40x40 | 180 " ±0.5“ | 2.375 " ±0.31“ | 2.625 " ±0.16“ | 0,28“ | S135 | |
| D50X100 | 180 " ±0.5“ | 2.875 " ±0.31“ | 3.25 " ±0.16“ | 0,362“ | S135 | |
| D80X100 | 180 " ±0.5“ | 3.5 " ±0.31“ | 3.625 " ±0.16“ | 0,368 | S135 | |
| D100X120 | 240 " ±0.5“ | 3.5 " ±0.31“ | 4.125 " ±0.16“ | 0.368* | S135 | |
| D130X120 | 240 " ±0.5“ | 3.5 " ±0.31“ | 4.125 " ±0.16“ | 0.368* | S135 | |
| SLOOT HEKS |
JT1720/1720V | 118 " ±0.5“ | 2.063 " ±0.31“ | 2.5“ | 0,27“ | S135 |
| JT2020 | 118 " ±0.5“ | 2.063 " ±0.31“ | 2.625* | 0.27* | S135 | |
| JT2720/2720V | 118 " ±0.5“ | 2.375 " ±0.31“ | 2.75* | 0,28“ | S135 | |
| JT2720M1 | 118 " ±0.5“ | 2.375 " ±0.31“ | 3 | 0,28% | S135 | |
| JT4020 | 117.2 " ±0.5“ | 2.875 " ±0.31“ | 3.25“ | 0.362* | S135 | |
| JT4020M1 | 117.2 " ±0.5“ | 2.875 " ±0.31“ | 3.5“ | 0.362* | S135 | |
| JT7020 | 117.2 " ±0.5“ | 3.5 " ±0.31“ | 4“ | 0.368* |
S135 |
| Diameter | Muurdikte | Lengte | Gewicht | Hulpmiddel Gezamenlijke OD | Draad | Staalkwaliteit | Torsiegrens | Min.Bend Straal | ||||||
| (mm) | (binnen) | (mm) | (binnen) | (m) | (voet) | (Kg) | (mm) | (binnen) | (KN.m) | (Lb.ft) | (m) | (voet) | ||
| 50 | 2 | 6.5 | 0,256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 | |||||||
| 60 | 2 3/8“ | 7.1 | 0,28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 | |||||||
| 73 | 2 7/8“ | 8 | 0,315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 | |||||||
| 76 | 3 | 9 | 0,354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 | |||||||
| 83 | 3 1/4* | 9 | 0,354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 |
G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
| 89 | 3 1/2“ | 9.35 | 0,368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S | |||||||||||
| 102 | 4 | 10 | 0,394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 | ||||||||||
| 114 | 4 1/2“ | 10 | 0,394 | 6 | 19.69 | 162 | 127 | 5 | NC38 NC40 |
G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| 114 | 4 1/2“ | 10 | 0,394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 |
295.28 |
||||||||||
