Productdetails:
|
| Naam: | hdd boorpijp | Diameter: | 127 MM. |
|---|---|---|---|
| muurdikte: | 9,19 mm | Lengte: | 6 m |
| Hulpmiddel Gezamenlijke OD: | 168 MM. | Draad: | NC50 |
| staalkwaliteit: | S | Verstoord smeed: | IEU |
| Markeren: | 9.19mm Spiraalvormige de Boorpijp van de Muurdikte,Verstoorde IEU smeedt Spiraalvormige Boorpijp,9.19mm de boorstaven van de Muurdikte hdd |
||

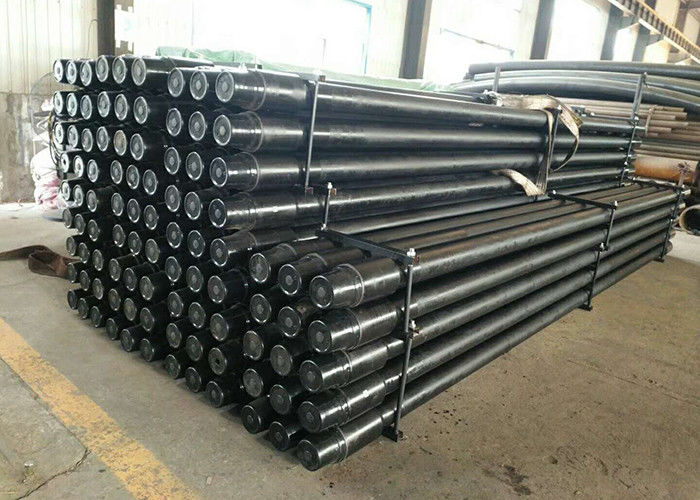

9,19 Mm-de Verstoorde Muurdikte IEU smeedt HDD-Boorpijp
Productdetail
Productomschrijving
Productspecificaties
| Diameter | Muurdikte | Lengte | Hulpmiddel Gezamenlijke OD | Verstoord Smeed |
Draad | Staal Rang |
||||
| (mm) | (binnen) | (mm) | (binnen) | (m) | (voet) | (mm) | (binnen) | |||
| Φ127 | 5 | 9.19 | 0,36“ | 6 | 19.69 | 168 | 6.63* | IEU | NC50 | G |
| 9 | 29.53 | |||||||||
| 12.7 | 0,5“ | 9.6 | 31.50 | S | ||||||
Productreeks
| Merk | Model | Lengte (schouder aan-schouder) |
Buiten Diameter |
Hulpmiddel Gezamenlijke OD | Muurdikte | Staalkwaliteit |
| COMPUTER-AIDED SOFTWARE ENGINEERING | Case6010 | 120 " ±0.5“ | 1.9 " ±0.031“ | 2.25*±0.16“ | 0,24“ | S135 |
| Case6030 | 120 " ±0.5“ | 2.375 " *0.031* | 2.625 " ±0.16“ | 0,28“ | S135 | |
| VERMEER | D10X15 | 120 " ±0.5“ | 1.66 " ±0.31“ | 1.88 " ±0.16“ | 0,24“ | S135 |
| D16x20/D18x22 | 120 " ±0.5“ | 1.9 " ±0.31“ | 2.125 " ±0.16“ | 0,24“ | S135 | |
| D24X40F/D24X40LW | 120 " ±0.5“ | 2.375 " ±0.31“ | 2.625 " ±0.16“ | 0,28“ | S135 | |
| D33X44ID40x40 | 180 " ±0.5“ | 2.375 " ±0.31“ | 2.625 " ±0.16“ | 0,28“ | S135 | |
| D50X100 | 180 " ±0.5“ | 2.875 " ±0.31“ | 3.25 " ±0.16“ | 0,362“ | S135 | |
| D80X100 | 180 " ±0.5“ | 3.5 " ±0.31“ | 3.625 " ±0.16“ | 0,368 | S135 | |
| D100X120 | 240 " ±0.5“ | 3.5 " ±0.31“ | 4.125 " ±0.16“ | 0.368* | S135 | |
| D130X120 | 240 " ±0.5“ | 3.5 " ±0.31“ | 4.125 " ±0.16“ | 0.368* | S135 | |
| SLOOT HEKS |
JT1720/1720V | 118 " ±0.5“ | 2.063 " ±0.31“ | 2.5“ | 0,27“ | S135 |
| JT2020 | 118 " ±0.5“ | 2.063 " ±0.31“ | 2.625* | 0.27* | S135 | |
| JT2720/2720V | 118 " ±0.5“ | 2.375 " ±0.31“ | 2.75* | 0,28“ | S135 | |
| JT2720M1 | 118 " ±0.5“ | 2.375 " ±0.31“ | 3 | 0,28% | S135 | |
| JT4020 | 117.2 " ±0.5“ | 2.875 " ±0.31“ | 3.25“ | 0.362* | S135 | |
| JT4020M1 | 117.2 " ±0.5“ | 2.875 " ±0.31“ | 3.5“ | 0.362* | S135 | |
| JT7020 | 117.2 " ±0.5“ | 3.5 " ±0.31“ | 4“ | 0.368* |
S135 |
| Diameter | Muurdikte | Lengte | Gewicht | Hulpmiddel Gezamenlijke OD | Draad | Staalkwaliteit | Torsiegrens | Min.Bend Straal | ||||||
| (mm) | (binnen) | (mm) | (binnen) | (m) | (voet) | (Kg) | (mm) | (binnen) | (KN.m) | (Lb.ft) | (m) | (voet) | ||
| 50 | 2 | 6.5 | 0,256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 | |||||||
| 60 | 2 3/8“ | 7.1 | 0,28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 | |||||||
| 73 | 2 7/8“ | 8 | 0,315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 | |||||||
| 76 | 3 | 9 | 0,354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 | |||||||
| 83 | 3 1/4* | 9 | 0,354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 |
G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
| 89 | 3 1/2“ | 9.35 | 0,368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S | |||||||||||
| 102 | 4 | 10 | 0,394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 | ||||||||||
| 114 | 4 1/2“ | 10 | 0,394 | 6 | 19.69 | 162 | 127 | 5 | NC38 NC40 |
G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| 114 | 4 1/2“ | 10 | 0,394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 |
295.28 |
||||||||||
Onze Diensten:
Boorpijp strikt volgens API ISO9001 norm.
Als u aan kwaliteit problemen binnen één maand na het teruggekeerde pakket vond. Allen strikt volgens het contract en voldoen aan de verplichtingen en de verantwoordelijkheden
vindt de 24 uren online klantenservice, vrij ons contacteer.
Ongeveer ons
De Boorco. van LangFangbaiwei, Ltd in het centrum van Industriezone die Peking wordt gevestigd, Tianjin en hebei-Yongqing. Langfang Hebei.
Ons bedrijf is een boringshulpmiddelen vervaardigend enterprisewith geologische integratie van ontwerp, goed, dubbele muur, olie, avegaar en andere speciale boorpijpen. En trenchless speciale boringshulpmiddelen zoals proefgidsbeetjes, wartels, reamers, subspaarder, pneumatische pijpstamper, pijp barstende machine.
